• Rear axle, 3.08 ratio (Not available with (K5L) Heavy-Duty Trailering Package.)
• Suspension Package, Premium Smooth Ride
• GVWR, 7100 lbs. (3221 kg) (Standard on 2WD models.)
• Rear wheel drive
• Battery, 660 cold cranking amps with 80 amp hour rating
• Alternator, 160 amps
• Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver (Not included with the PPV Police package)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• Powertrain grade braking

• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel
• Tires, P265/70R17 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season blackwall
• Luggage rack side rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Assist steps, Black
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Mirrors, outside heated power-adjustable, manual-folding (Mirror caps are Black.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, Black
• Liftgate with liftglass rear door system with rear-window wiper/washer

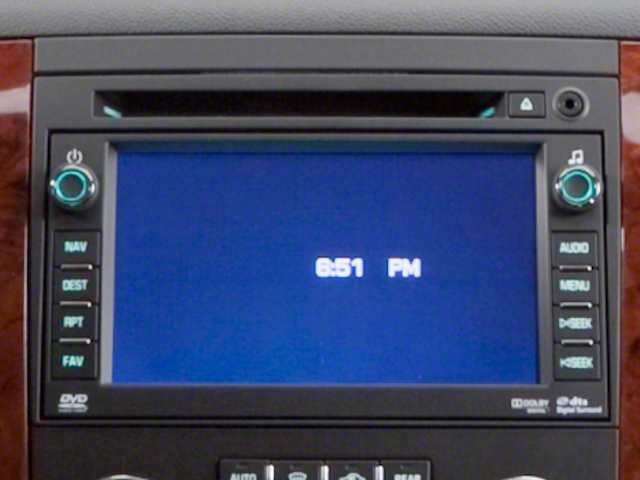

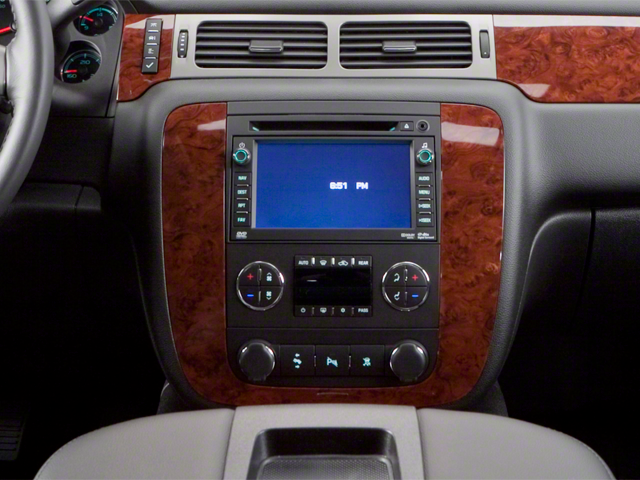

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, TheftLock and auxiliary audio input jack
• Audio system feature, 6-speaker system (With (PPV) Identifier for Police vehicle, includes 8-speaker system)
• SiriusXM Satellite Radio, delete

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining, center fold-down armrest with storage, lockable storage compartments in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets (With vinyl seats also includes driver manual lumbar control. With vinyl seats requires (19V) Ebony vinyl and (BG9) Black rubberized-vinyl floor covering)

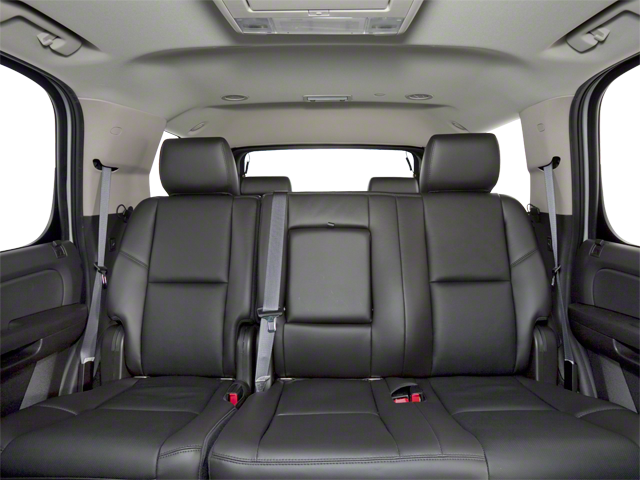

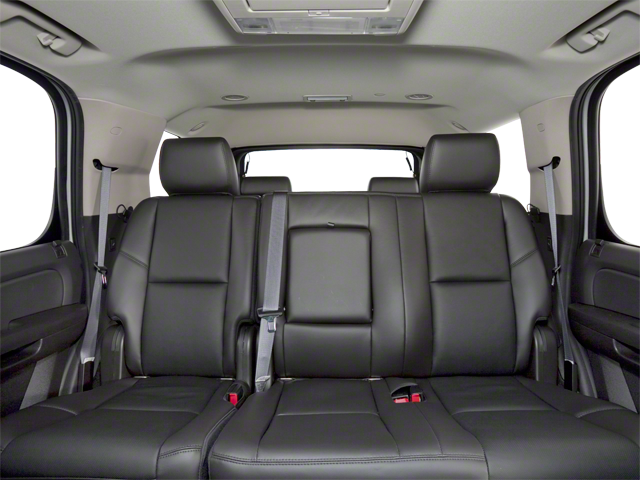

• Seats, second row 60/40 split-folding bench, 3-passenger with center armrest with 2 cup holders (Vinyl seats included and only available with (AZ3) front 40/20/40 vinyl split-bench seats, SEO (5T5) second and third row vinyl with front cloth seats or (9S1) seats, driver and passenger front, individual seats in vinyl trim.)
• Seat adjuster, driver 6-way power
• Seats, third row 50/50 split-bench, 3-passenger removable, all-belts-to-seat
• Headliner, cloth
• Floor covering, Black rubberized-vinyl
• Steering wheel, vinyl

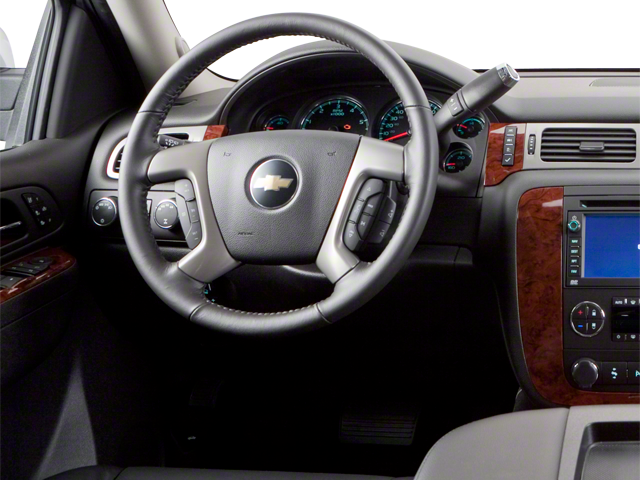

• Steering wheel controls, mounted cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

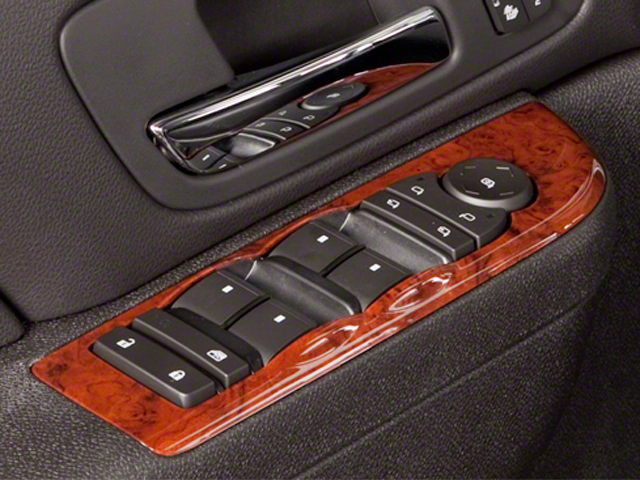

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection (With (PPV) Identifier for Police vehicle, Auto Lockout is disabled on Driver door.)
• Remote vehicle starter prep package includes Remote Keyless Entry (Remote vehicle starter fob available as a Chevy Accessory.)
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, tri-zone manual HVAC controls with individual climate settings for driver, right-front passenger and rear seat with rear controls located in floor console with front bucket seats and in the roof console with front bench seat (With PPV, rear controls located in roof console)
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 3 auxiliary, 12-volt includes 2 on the instrument panel and 1 in the cargo area
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions (With (PPV) Identifier for Police vehicle, does not include driver- and passenger-side door switch with delayed entry feature.)

• StabiliTrak, stability control system with traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) passenger third row bench seat (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes, Automatic Crash Response, Emergency Services, Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with OnStar eNav, Destination Download (requires navigation radio), OnStar Vehicle Diagnostics, Hands Free Calling and available OnStar RemoteLink mobile app. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Safety belts, 3-point, driver and right-front passenger
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitoring System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

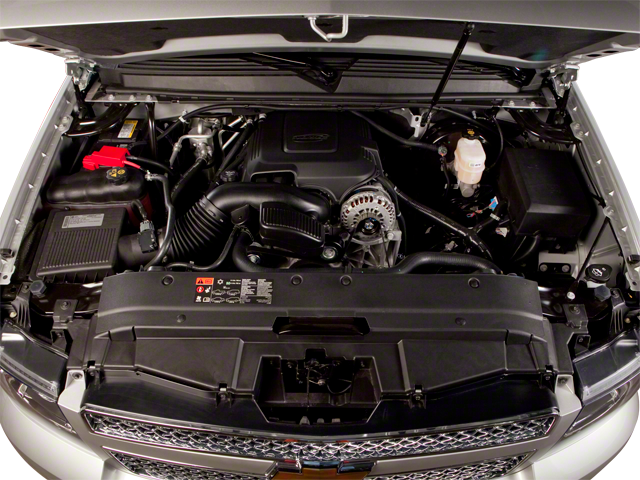

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• iron block (STD)

• Preferred Equipment Group 1FL
• 3.08 Rear Axle Ratio
• Heavy-Duty Rear Locking Differential
• 17" x 7.5" Steel Police Wheels

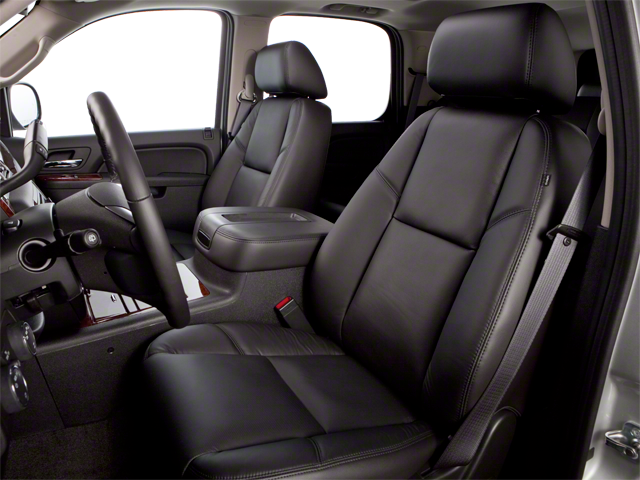

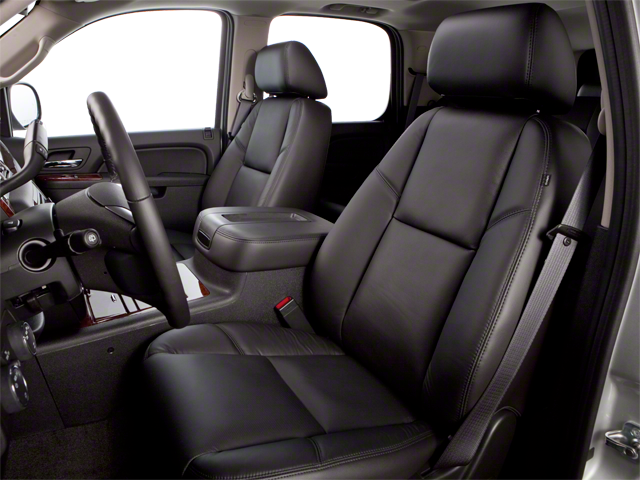

• Front High-Back Reclining Bucket Seats
• Premium Cloth Seat Trim
• HD Police-Rated Suspension
• AM/FM Stereo w/MP3 Compatible CD Player
• Color-Keyed Carpeted Floor Covering
• License Plate Front Mounting Package
• Dual 660 Cold Cranking Amps Battery
• Modified Police "City Brake Package" Brake System
• 6-Way Power Front Passenger Seat Adjuster
• 1st & 2nd Row Color-Keyed Carpeted Floor Mats
• Black Rubberized Vinyl Floor Covering
• Heavy-Duty Air-to-Oil External Engine Oil Cooler
• Heavy-Duty Air-to-Oil Auxiliary Transmission Oil Cooler
• Skid Plate Package
• SiriusXM Satellite Radio Delete
• Auxiliary Ground Studs
• Radio Suppression
• Front Frame-Mounted Recovery Hooks
• 4-Wheel Disc Brakes
• 8 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Spoiler
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3250
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2696
• Curb Weight - Rear (lbs): 2589
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 5-Link
• Spring Capacity - Front (lbs): 3250
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.787
• Tires
• Front Tire Order Code: QGI
• Rear Tire Order Code: QGI
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): 2135
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116
• Length, Overall w/rear bumper (in): 202
• Width, Max w/o mirrors (in): 79
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.7
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.6
• Third Head Room (in): 39.7
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

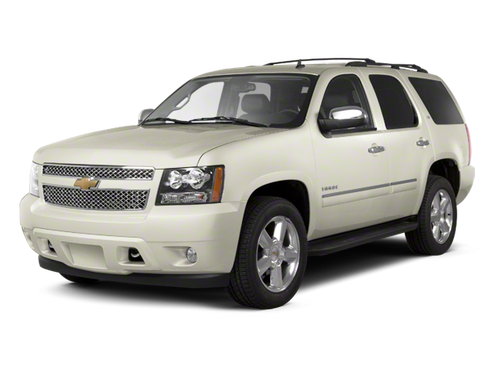

• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
